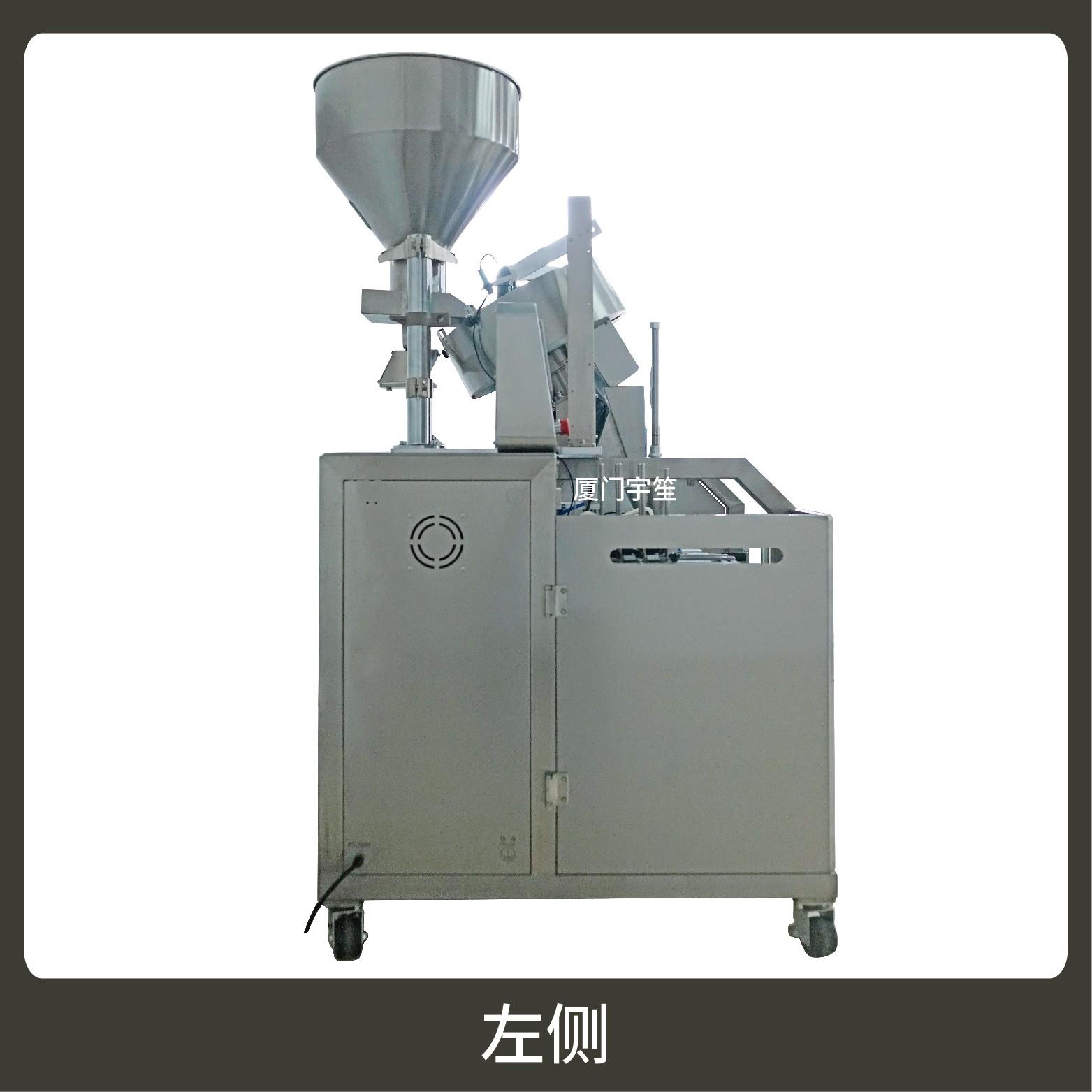

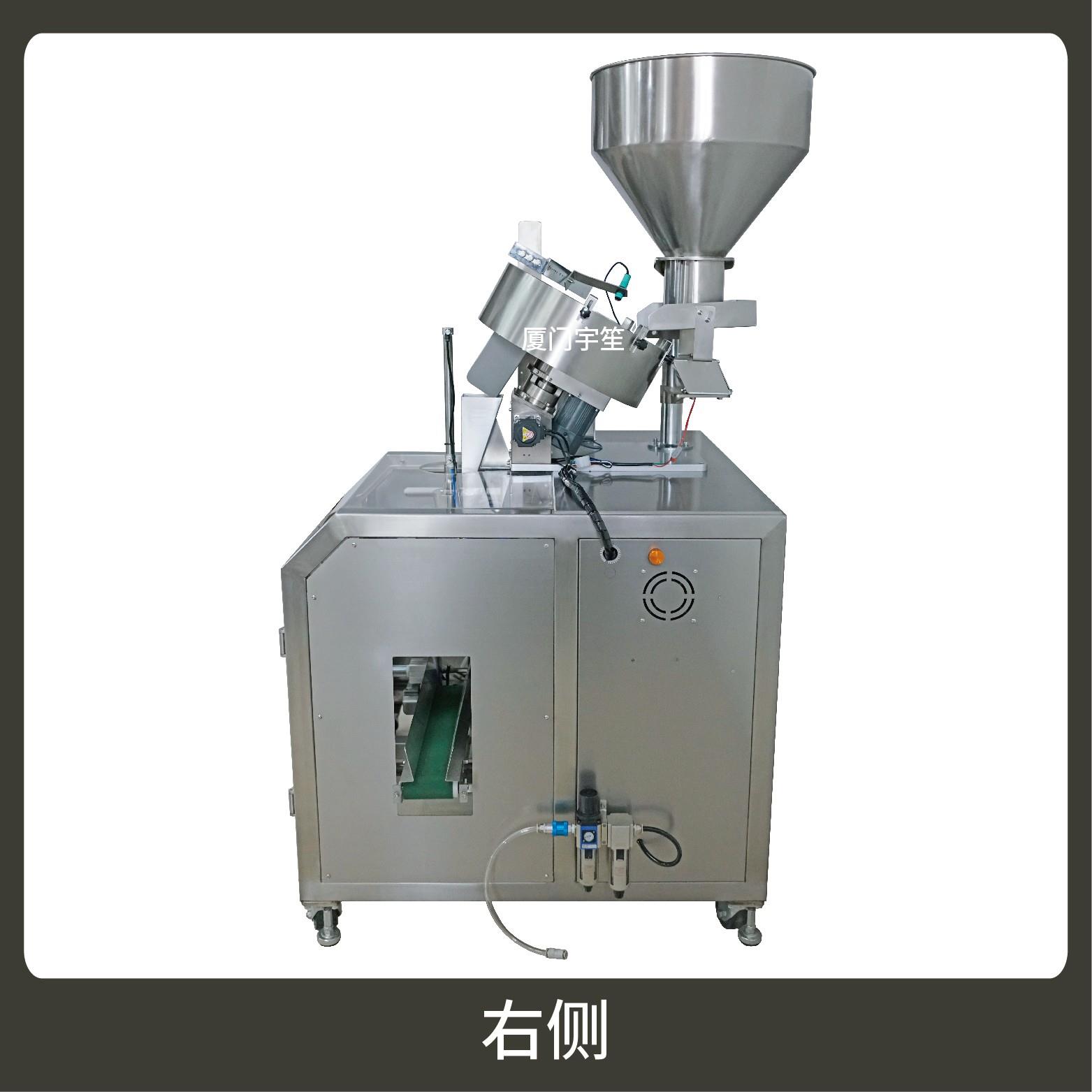

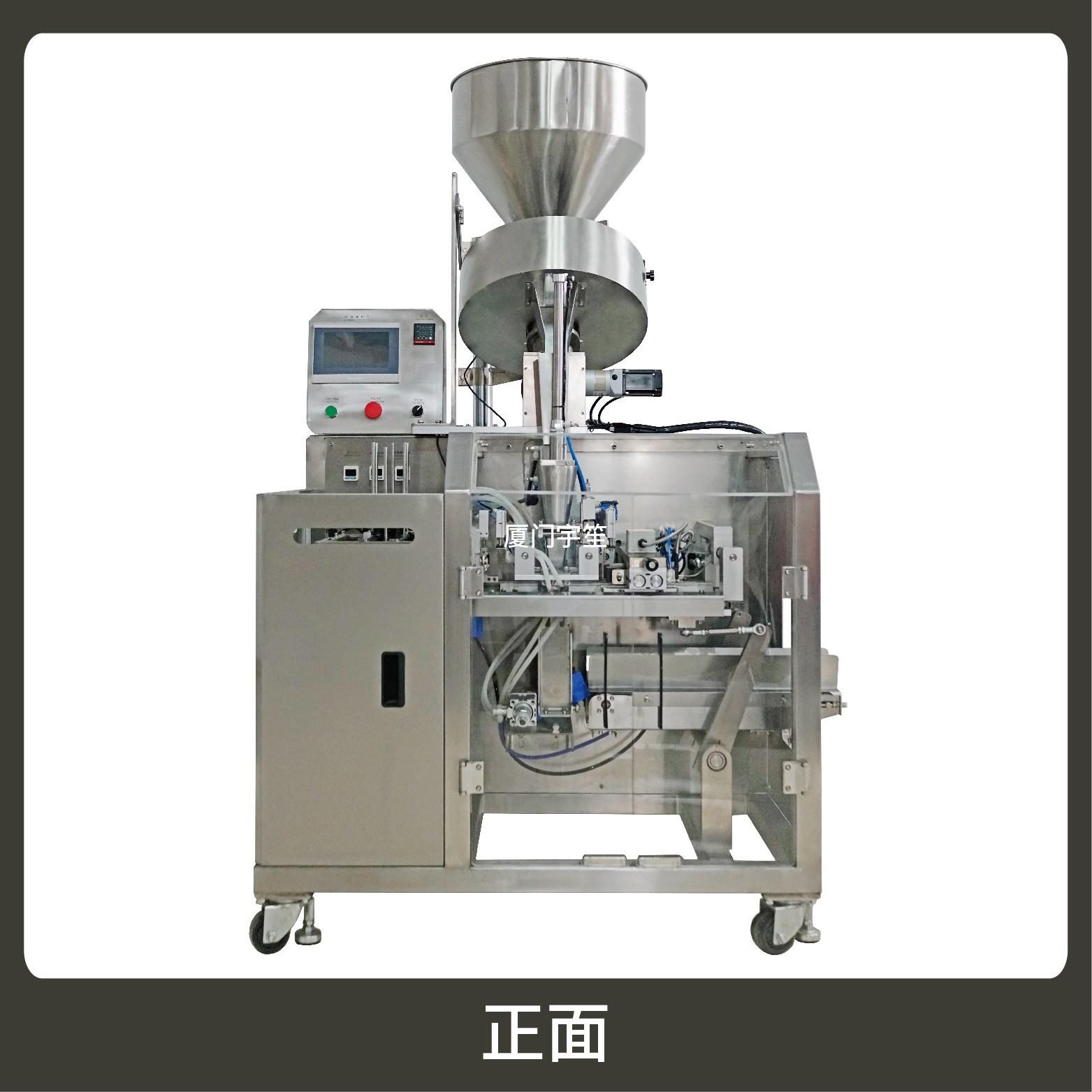

YS-160SL M袋給袋式顆粒包裝機
特點：
1、適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝。
It is suitable for the measurement and packaging of granules, powders, liquids, sauces and other items in the food industry.

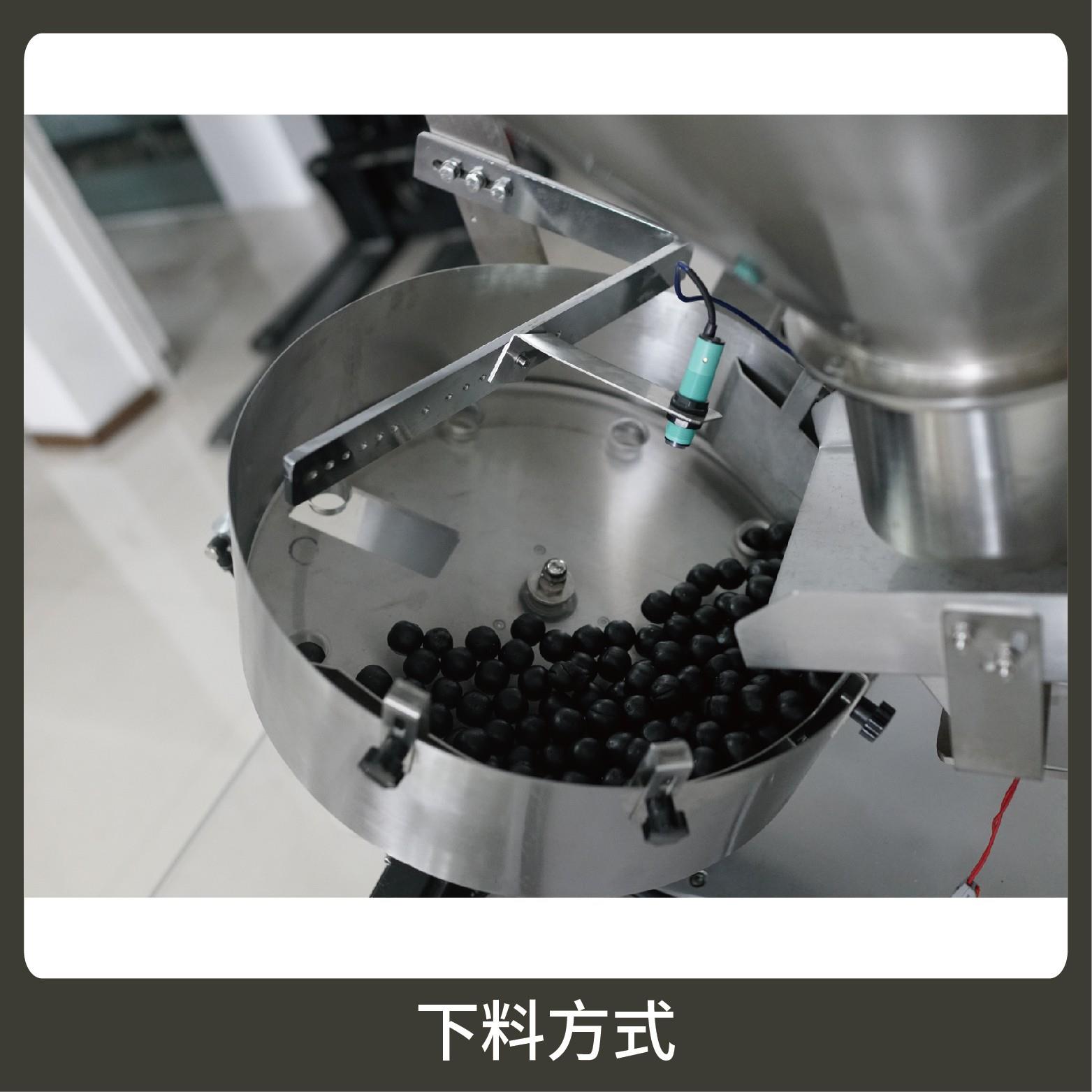

2、包裝流程全自動，無需人工操作，可抽真空、充氮氣，組合下料。可根據充填物料的性質選配不同的下料結構，且可根據客戶要求配置打印批號等功能。
The packaging process is fully automatic without manual operation.it can be vacuum, filled with nitrogen, combinedfeeding.Different blanking structures can be selected according to the nature of the filling material, and can be configured according to customer requirements to print batch number and other functions.
3、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material: composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.
技術參數：
計量范圍：20-500g
Measuring Scope
預制袋：長 ( L ) ：100 - 240mm
Prefab bag 寬 ( W ) ：80 - 160mm
包裝速度：20 - 35bags / min
Packing Speed
外型尺寸：1525 * 1048 * 1876 mm
Dimension ( L * W * H )
整機重量：450 kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2.6kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、包裝流程全自動，無需人工操作，可抽真空、充氮氣，組合下料。可根據充填物料的性質選配不同的下料結構，且可根據客戶要求配置打印批號等功能。
The packaging process is fully automatic without manual operation.it can be vacuum, filled with nitrogen, combinedfeeding.Different blanking structures can be selected according to the nature of the filling material, and can be configured according to customer requirements to print batch number and other functions.
2、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
3、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material： composite film, such as： pure aluminum, aluminum plating and other prefabricated bags.
計量范圍：20-500g
Measuring Scope
預制袋：長 ( L ) ：100 - 240mm
Prefab bag 寬 ( W ) ：80 - 160mm
包裝速度：20 - 35bags / min
Packing Speed
外型尺寸：1525 * 1048 * 1876 mm
Dimension ( L * W * H )
整機重量：450 kg
Weight
總 功 率：AC220V / 50 - 60Hz / 2.6kw
Total Power
氣 源：≥0.6Mpa
Gas source
適用于食品、醫藥、化工、化妝品行業中顆粒、粉劑、液體、醬料等物品的計量包裝。
It is suitable for the measurement and packaging of granules, powders, liquids, sauces and other items in the food industry.
